Drone Mapping for Infrastructure: Asset Intelligence Beats Image Volume

But here's what matters: the real value isn't in collecting more images faster. It's in extracting reliable intelligence from those images through automated data quality assurance before analysis begins.

Drone mapping, summarized

At its core, drone mapping is the systematic capture of aerial imagery using unmanned aerial vehicles (UAVs) and the processing of that imagery into georeferenced, analysis-ready maps and datasets.

Unlike traditional aerial photography, drone mapping combines real-time positioning data, multi-spectral sensors, and ground control points to produce dimensional accuracy down to the centimeter.

For contractors managing transmission lines, substations, or pole-mounted equipment, drone mapping eliminates the need for costly bucket trucks and site revisits. For drone service providers serving utility clients, mapping capability is increasingly a baseline expectation. A poorly executed survey can cost the contract or damage the relationship.

The term encompasses several related activities: photogrammetry (reconstructing 3D geometry from overlapping images), orthomosaic creation (stitching images into a corrected overhead view), volumetric surveys (measuring stockpiles or excavation), and thermal imaging.

Each application serves a different purpose, but all share a common problem: raw imagery volume means nothing without reliable, consistent processing.

The Process: From Flight to Usable Maps

A typical drone mapping mission involves flying a systematic pattern at a fixed altitude and speed. Modern survey-grade drones carry stabilized cameras capable of 20+ megapixel resolution and can be equipped with RGB, thermal, or multispectral sensors depending on the inspection objective.

Flight parameters (e.g. altitude, overlap percentage, ground speed) are set by mission planning software to ensure sufficient image overlap for processing. Industry guidance recommends at least 60% side overlap and 75% front overlap, with up to 85% for challenging terrain.

A standard infrastructure inspection might involve 500–2,000 images per site, depending on area size and required detail.

Once the flight is done, the real work begins. Raw drone images are georeferenced using GPS/GNSS data embedded during flight. Ground control points (physical markers surveyed with high-precision GPS) improve accuracy further, though many commercial surveys skip this step to save time and cost.

The images are then aligned and merged into an orthomosaic which is a corrected, overhead map with consistent scale and no perspective distortion. Simultaneously, structure-from-motion algorithms reconstruct 3D geometry, creating dense point clouds or mesh models.

But this is where most drone mapping operations falter.

Blurry images, lighting inconsistencies, seasonal vegetation, weather artifacts, and sensor miscalibration all degrade the usability of the final product. A drone service provider might deliver 1,500 images, but if 300 are unusable due to motion blur or shadowing, the field team still can't answer the original question and may need to re-mobilize.

For contractors conducting pre-construction documentation or post-construction quality assurance, unusable imagery creates audit liability. For DSPs competing for transmission contracts, data quality inconsistency is a fast way to lose a client.

Where Drone Mapping Matters

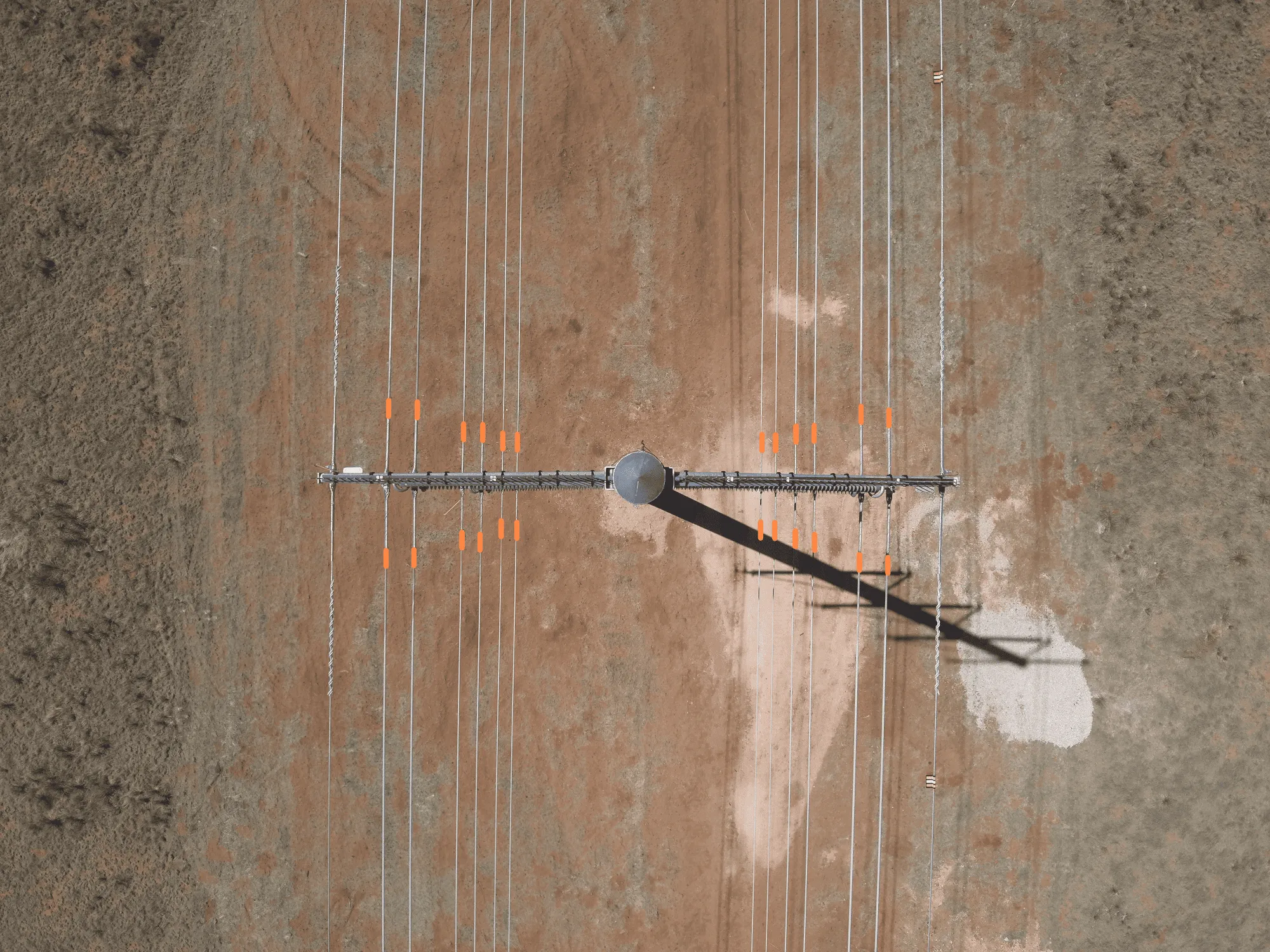

The first and most obvious use case is transmission and distribution line inspection. Utilities deploy drone mapping to inspect overhead lines for vegetation encroachment, corrosion, hardware degradation, and structural damage.

Historically, this required helicopter flights or climbers, both expensive and safety-intensive. Drones reduce cost and risk, but only if the imagery reliably captures the asset condition. Contractors performing construction quality verification use drone mapping to document installation compliance, bolt tightness, coating application, and grounding connections. A single survey creates a permanent, georeferenced record; subsequent drone flights detect changes or defects.

Substations present a different challenge. They contain dozens of interconnected assets in confined spaces. Thermal imaging from drones identifies hotspots indicative of loose connections or overload. Orthomosaics document transformer placement, cable routing, and grounding installation.

After high winds or ice storms, drone mapping accelerates damage inventory. Instead of sending crews to every affected mile of line, operators fly a corridor, identify damage locations, and route crews precisely. The speed advantage is genuine, but only when the imagery quality supports rapid assessment.

For contractors, drone imagery creates an irrefutable record of site conditions at a specific date and time. This protects against claims of pre-existing damage and proves compliance with installation standards. For DSPs, consistent, high-quality documentation wins contracts and retains clients.

UAV Mapping for Contractors: Margin Protection Through Intelligence

Contractors operating on transmission, distribution, or substation projects face a persistent margin squeeze. Each unexpected site revisit, each failed audit, each dispute over work quality eats into profitability.

Drone mapping addresses three critical contractor pain points.

Documentation gaps

Field teams working under time pressure may not photograph every joint, connection, or grounding point. Weeks or months later, during audit or handoff, gaps in documentation surface. Drone surveys create systematic, georeferenced records that eliminate ambiguity.

Audit exposure

Utility clients increasingly demand evidence of installation compliance. Without high-resolution, timestamped imagery, contractors rely on written reports and crew testimony—both vulnerable to challenge. Drone-derived orthomosaics and thermal data provide defensible, technical proof.

Repeat mobilization

A field crew misses a defect during initial inspection. The utility identifies it later. The crew must return to re-inspect and repair—a costly, schedule-disrupting scenario. Drone mapping, executed with data quality discipline, eliminates most of these surprises.

The catch: drone mapping only solves these problems if the imagery is actually usable.

A contractor who commissions a drone survey expecting complete asset documentation, then receives 30% blurry images and inconsistent lighting, hasn't solved the problem—they've created a new one.

DSP Success: Turnaround Time Without Quality Compromise

Drone service providers compete on speed, cost, and client retention. In transmission, the utility contracts with the DSP, not the contractor; a single quality lapse can end the relationship.

DSPs need to deliver data fast (meaning days, not weeks) while still meeting utility standards for asset capture, image consistency, and georeferencing accuracy. Traditionally, this has meant an impossible choice: fast and incomplete, or thorough and slow.

The real differentiator is automated data quality assurance. A DSP that systematically screens images for motion blur, exposure problems, and structural detection confidence before delivery doesn't lose contracts to re-shoots. They deliver fewer images—only the usable ones—on time, with consistent standards.

Inspection Is a Commodity. Asset Intelligence Isn't.

The infrastructure industry has reached a commodity phase with basic drone surveying. Every competitor can rent a drone and send a pilot airborne. The proliferation of affordable hardware and software has made UAV mapping accessible but not necessarily valuable.

The value gap opens when you move from "we captured images" to "we extracted actionable intelligence from those images."

Consider a transmission line inspection. A raw drone survey might yield 800 images. Without preprocessing, those 800 images create three problems: the field team doesn't know which images to prioritize, some images are unusable but appear in reports, and inconsistent lighting or framing makes automated analysis difficult.

The solution is a data pipeline that runs before defect detection begins: automated photo-to-structure association (linking each image to a specific asset), orientation tracking (knowing which direction the camera was facing relative to the asset), and image quality assurance (eliminating unusable frames before the analyst sees them).

This preprocessing step saves time, reduces audit risk, and enables utilities and contractors to answer specific questions with confidence: "Is this bolt loose." "Has this insulator degraded." "Is vegetation encroaching on clearance."

Common Questions About Drone Mapping

The actual bottleneck isn’t lack of footage

The infrastructure industry is drowning in imagery.

Utility clients receive drone reports with hundreds or thousands of images and struggle to extract insight. DSPs win bids by promising delivery speed, then lose contracts when the imagery quality doesn't support the client's actual use case. Contractors commission surveys expecting systematic asset documentation and receive raw image folders with inconsistent framing, lighting, and defect visibility.

So the problem doesn’t lie with the drone or the camera, but rather the pipeline.

Detect’s Data Quality Program for drone service providers

Detect's approach to drone mapping intelligence starts with a non-negotiable step: data quality. Before any defect analysis, every image is screened for capture consistency, structural association, and reliability. Unusable images are flagged or removed. Orientation is verified. Quality metrics are transparent.

This discipline eliminates the time sink of post-processing triage. It removes the audit risk of undocumented assets. It ensures that when a utility or contractor asks, "Does this asset meet specification," the answer is backed by reliable, documented imagery.

For contractors managing margin, this means audit readiness and reduced re-mobilization risk. For DSPs competing for transmission work, this means retaining clients and winning re-bids. For utilities, this means usable intelligence instead of image volume.

If you're managing contractor operations or running a drone service business, the survey isn't the bottleneck. The processing pipeline is. Detect's data quality program automates the discipline most operations skip: photo-to-structure association, orientation tracking, and image quality assurance before any human analysis begins. The result is faster turnaround, defensible documentation, and the confidence that your imagery actually answers the questions you need answered.
